I know the sinking feeling you get when you open a new coil, hoping for perfection, only to find greasy spots that will ruin your production run. It stops your lines, wastes your money, and damages your reputation with your own clients. I have seen this frustration too many times in my 27 years in the metal packaging industry.
While no manufacturer can honestly promise absolute "zero" oil because a microscopic layer is needed for protection, I guarantee that our strict Electrostatic Oiling process keeps surface oil within the precise 2-5 mg/m² range, ensuring your sheets are free from visible stains that destroy coating adhesion.
However, you need more than just a promise; you need to understand the technical reality. Let me explain exactly how we manage this delicate balance at Huajiang to protect your business.
How does your quality control detect oil spots before packing?
You need to know that the metal you buy has been checked by more than just a tired worker at the end of a long shift. You cannot afford to be the one who discovers a defect after the material has already shipped across the ocean.
We utilize a three-stage detection system combining automated high-speed cameras, continuous visual monitoring by senior technicians, and laboratory "Hydrophilic Balance" testing to catch any oil irregularities. This ensures that every coil leaving our Fujian facility meets strict ASTM and ISO surface standards before it ever reaches your warehouse.
To truly understand how we prevent oil spots, we must look at the "why" and "how" of the process. In the world of Electrolytic Tin Plate 1 (ETP), oil is a necessary evil. Without a tiny bit of oil (usually Dioctyl Sebacate 2, or DOS), the sheets would scratch each other during transport. They would be susceptible to friction damage. However, the difference between "protection" and "pollution" is measured in milligrams. At our factory, we treat oil control as a science. The process starts long before the final oiling. We use a rigorous cleaning protocol involving chemical degreasing, electrolytic degreasing, and ultrasonic cleaning 3. This removes 90% of the rolling oil from the base steel. If the base isn’t clean, the tin won’t stick. You get stains from the inside out.
The Three Layers of Detection
We do not rely on luck. We use a layered approach to ensure quality.
| Detection Method | What It Does | Why It Matters to You |
|---|---|---|

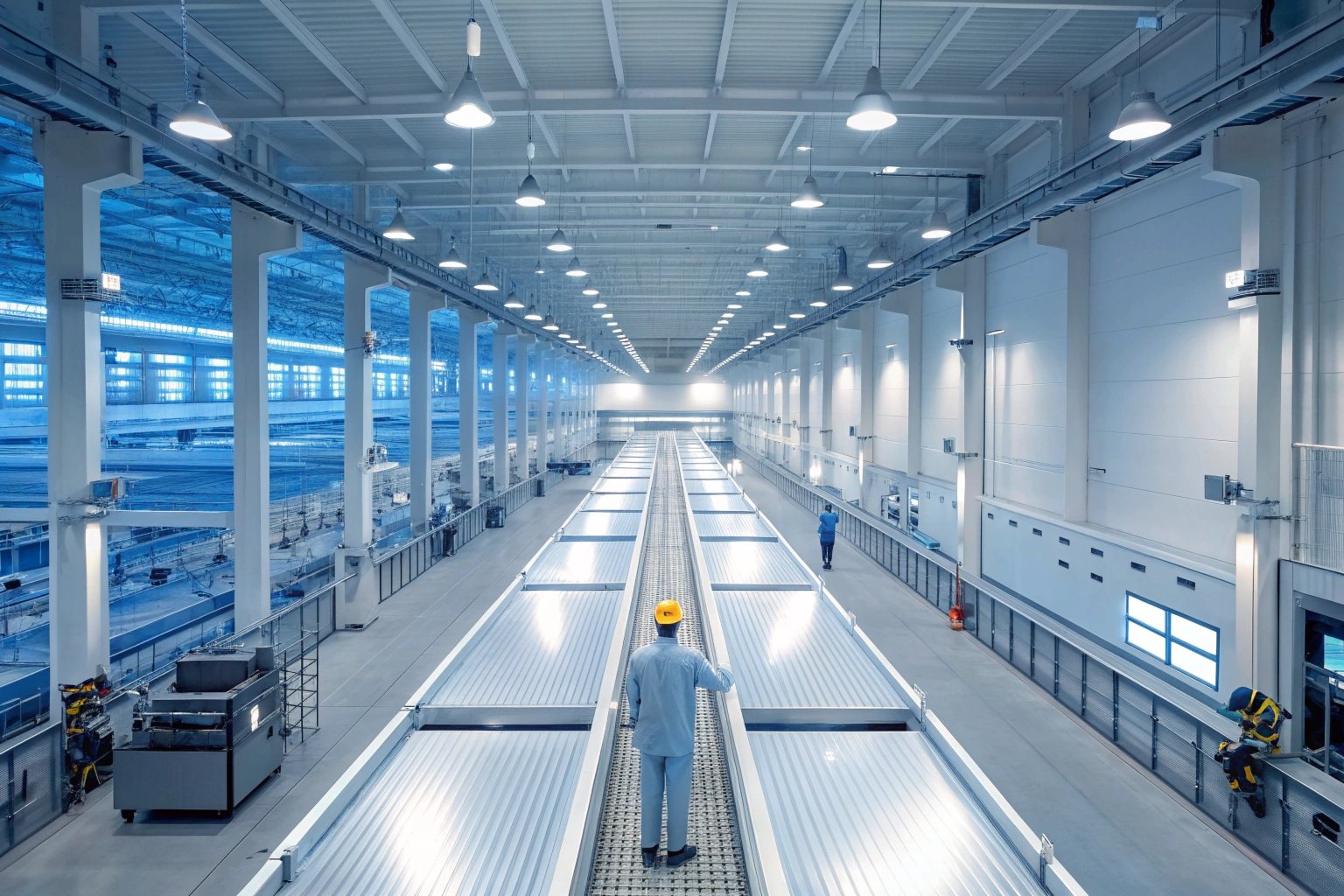

| Online Strobe Inspection | Uses high-frequency flashing lights to freeze the image of the fast-moving coil. | Detects visible oil drips, splashes, or mechanical grease spots immediately so we can cut that section out. |
| Soxhlet Extraction (Lab) | A chemical test where we boil a sample in solvent to extract and weigh the surface oil. | It gives us a precise number (e.g., 3.5 mg/m²). This ensures the oil is not too heavy for your lacquering machines. |
| Water Break Test | We spray water on the sample. If the water film breaks instantly into beads, it means there is too much oil. | A quick, effective "pass/fail" check that mimics how your coating will behave on the production line. |
The Human Element in Automation
Machines are great, but they lack intuition. That is why we still employ experienced inspectors. Our team members have been with us for over ten years. They know what a "bad" sheet looks like just by the way the light hits it. They watch the monitors constantly. If the automated system flags an anomaly, the line stops. The engineer checks the coil physically. We check the edges. We check the center. We check the tail. We would rather scrap a hundred meters of steel here in China than have you face a rejection in Mexico or Spain. This combination of high-tech sensors and human experience creates a safety net for your purchase.
Will excess oil cause "eyeholes" or defects in my coating line?
There is nothing worse than applying a beautiful gold lacquer to a sheet, curing it in the oven, and then seeing hundreds of tiny craters appear. It looks like the moon’s surface, and it means the entire batch is garbage. You are rightly worried about this.
Excess oil is the primary cause of "eyeholes" and "crawling" because it lowers the surface energy of the tinplate, preventing the lacquer from wetting the surface evenly. If the oil weight exceeds 5-6 mg/m², your coating will physically pull away from the oily spots, leaving exposed metal and ruining the pack.
Let’s dive into the physics of this because it helps to explain why we are so obsessive about that "2 to 5 mg/m²" range. It all comes down to Surface Tension 4. Imagine waxing your car and then trying to pour water on it. The water beads up and runs off. That is exactly what happens to your lacquer if my tinplate has too much oil. The lacquer (paint) needs to "wet" the surface. For this to happen, the surface energy 5 of the tinplate must be higher than the surface tension of the lacquer.
Understanding the Mechanism of Failure
When there is an oil spot, that specific spot has very low surface energy. When you apply the wet coating, the liquid coating naturally flows away from the low-energy oil spot toward the cleaner, higher-energy areas surrounding it. This movement creates a void in the center—the dreaded "eyehole" or crater. This isn’t just a cosmetic issue. An eyehole is a breach in the defense.
- Corrosion Risk: The bare metal inside the eyehole is exposed to the acidic contents of the food (like tomato paste or fruit syrup).
- Sulfur Staining: If you are packing meat or fish, sulfur will attack that exposed spot immediately.
- Adhesion Failure: Even if you don’t see a hole, a thick oil film prevents the lacquer from gripping the tin layer. After sterilization (retorting), the coating might peel off like old skin.
Common Coating Defects Linked to Oil
You need to identify these issues quickly if they happen.
| Defect Name | Visual Appearance | Root Cause (Oil Related) |
|---|---|---|
| Eyeholes (Craters) | Small, round voids where the metal is visible. | Concentrated oil droplet or splash preventing wetting. |
| Crawling (Retraction) | The coating pulls back from edges or large areas. | Generalized heavy oiling across the entire sheet surface. |
| Orange Peel | An uneven, wavy texture like an Orange Peel 6. | Uneven oil distribution causes different flow rates during curing. |
At Huajiang, we understand that many of our clients, like the large can makers in Europe or South America, use high-speed coating lines. You don’t have time to wipe sheets down. That is why we tailor our DOS oil levels. If we know you are doing heavy printing, we aim for the lower end of the spectrum (around 2-3 mg/m²). It provides just enough lubrication to prevent scratches but leaves the surface "hungry" enough to grab the ink and lacquer tight. We adjust our process to fit your machine, not the other way around.
Do you use electrostatic oiling to ensure a uniform, thin layer?
In the old days, factories used mechanical rollers or even cotton wicks to wipe oil onto the steel. That was messy and inconsistent. One side of the sheet might be dry, while the other side was swimming in oil. You need to know if we have moved past that era.
We exclusively use advanced Electrostatic Oiling (ESO) systems on all 53 of our coating and cutting lines to atomize the oil into a charged mist. This technology guarantees that every square millimeter of the plate receives an identical, microscopic dosage of oil, eliminating the risk of pooling or uneven patches.
The Electrostatic Oiler is the heart of our finishing process. It works on a principle similar to how a magnet attracts iron filings, but with fluids. Here is how we ensure uniformity that mechanical methods simply cannot match.
How the ESO Process Works
- Atomization: The oil (DOS or ATBC) is pumped into the chamber. Instead of being poured, it is spun or sprayed into a fine mist 7.
- Charging: We apply a high-voltage electrostatic charge to these mist particles.
- Attraction: The tinplate strip acts as the ground (neutral). Because the oil particles are charged, they are magnetically attracted to the steel strip.
- Uniform Wrap: The particles don’t just fall on top; they are pulled onto the surface. This ensures that even the microscopic peaks and valleys of the tin surface get covered.
Why ESO is Critical for You
Using this technology solves the two biggest problems in tinplate usage: Blocking and Varnishing.
Preventing "Blocking" (Sticking):
If the oil is too light or uneven, the sheets of tinplate act like two pieces of glass with water between them—they stick together. When your automatic feeder tries to pick up one sheet, it might pick up two. This "double sheet" feed can smash the expensive blanket on your printing press or jam your welding machine 8. Our ESO system ensures there is just enough separation to let your feeders work smoothly.
Optimizing Varnishing (Coating):
As we discussed, heavy oil ruins coating. Mechanical oilers often leave "streaks" of heavy oil. ESO creates a "fog" that settles evenly. It allows us to dial in the weight to a precise number. If you order "3.5 mg/m²," we can set the voltage and flow rate to deliver exactly that.
Comparison: Electrostatic vs. Mechanical Oiling
The difference in technology leads to a difference in results.
| Feature | Electrostatic Oiling (Huajiang Standard) | Mechanical / Roller Oiling (Old Tech) |
|---|---|---|
| Uniformity | Extremely High (Micro-level coverage) | Low (Prone to streaks and heavy edges) |
| Quantity Control | Precise (Adjustable by voltage) | Difficult (Relies on pressure of rollers) |
| Risk of Pooling | Near Zero | High (Oil can drip or splash) |
| Edge Coverage | Excellent (Wraps around edges) | Poor (Often misses edges or overloads them) |
We invest in this technology because we know that consistency is what keeps your factory running. You shouldn’t have to adjust your machine settings for every bundle of steel you open. This consistency helps you plan your production better. It reduces your downtime. It saves you money in the long run.
What should I do if I find oil contamination on the sheets?
Even with the best technology and the strictest controls, things can occasionally go wrong in the real world. Maybe a seal broke during transit, or maybe there was a rare anomaly. If you are standing on your factory floor looking at a suspect bundle, you need a plan, not a panic attack.
If you detect oil contamination, immediately quarantine the affected bundle, take high-resolution photos under good lighting, and record the coil or package number found on the tag. Do not attempt to process the material, and contact us immediately so we can trace the batch records and initiate a replacement or compensation plan.
Finding a defect is stressful, but handling it correctly saves both of us money and time. Here is a professional protocol for managing a quality incident 9, based on how I successfully resolve issues with clients worldwide.
Step 1: Isolate and Identify
Stop the machine immediately. Do not try to "run through it" hoping the oil will disappear. It won’t. It will only contaminate your rollers and ruin more product. Move the affected bundle to a "Quarantine Area."
- Locate the ID: Every package from Huajiang has a unique ID tag. This is the "passport" of the steel. It tells me which day it was made, which line it ran on, and who the operator was. I need this number to check my production logs. Without this number, I cannot find the root cause.
Step 2: Documentation (The CSI Approach)
I need you to be my eyes on the ground. Clear evidence helps me approve your claim faster.
- Take Photos: Don’t just take a close-up. Take a "wide shot" showing the pattern of the oil. Is it a continuous streak? Is it random drops? Is it only on the edges?
- The Wipe Test: Take a clean white cloth or tissue. Wipe the surface. If the tissue turns black or dark gray, it might be dirt mixed with oil. If it stays clear but is wet, it is pure oil. Take a picture of the tissue.
- Check for Moisture: Sometimes, what looks like oil is actually water condensation (sweat). Touch it. Is it oily or watery? This distinction is crucial.
Step 3: Mitigation (Can we save it?)
For small spots, you might be able to clean it, but this is risky.
- Solvent Wiping: In an emergency, if you need 50 sheets to finish an order, you can wipe them with a cloth soaked in alcohol or a mild industrial solvent. However, never do this for a large batch. It is labor-intensive and can leave lint or static electricity 10, which causes new problems.
- Baking: Some customers try to bake the sheets to burn off the oil. Be careful. This can oxidize the tin layer, making it yellow and harder to solder later.
Step 4: Contact Us
Send the photos and the ID number to my email (chasechan@hj-tinplate.com). Because we are a large manufacturer with a reputation to protect, we don’t hide from problems.
- Traceability: I will pull the "retain samples" from that specific batch in our lab. If my sample shows the same issue, I will approve your claim immediately.
- Resolution: We can issue a credit note, ship free replacements in your next container, or air-freight new material if it is critical. We build our business on long-term relationships, not one-off deals. If the mistake is ours, we pay for it. That is the security you get when buying from a factory with 1800 employees and a global brand to uphold.
Conclusion
We cannot violate the laws of physics—steel needs oil to survive the journey to you. However, we can control the process with military precision. Through electrostatic oiling and rigorous lab testing, we ensure the oil on your plate is a tool for protection, not a barrier to production.
